Description

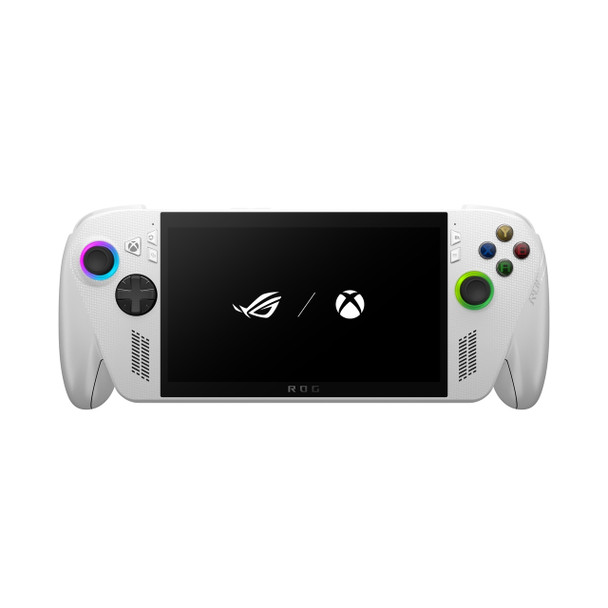

Asus ROG Xbox Ally Portable Game Console - White | RC73YA-NH002W
| Part No | 90NV00G1-M000J0 |
| Sales Model Name | RC73YA-NH002W |
| EAN Code | 4711636143363 |
| UPC Code | 199291143364 |
| WEEE | 0.823 |
| BASE UNIT | VSNV00G1-BU1000 |
| Marketing Name | ROG Ally |
| Color | White |
| Dimension (W x D x H) | 29.0 x 12.1 x 2.75 ~ 5.09 cm (11.42" x 4.76" x 1.08" ~ 2.00") |
| Weight | 670 g (1.48 lbs) |
| Processor | AMD Ryzen™ Z2 A Processor 2.8GHz (6MB Cache, up to 3.8 GHz, 4 cores, 8 Threads) |
| Chipset | N/A |
| Graphic Memory | N/A |
| IGPU | AMD Radeon™ Graphics |
| Panel Size | 7-inch |
| Resolution | FHD (1920 x 1080) 16:9 |
| Refresh Rate | 120Hz |
| Glass | Gorilla® Glass DXC Gorilla® Glass Victus™ |
| Touch Screen | Touch Screen (10-point multi-touch) |
| Viewing Angle | 85/85/85/85 |
| Panel Tech | IPS-level |
| Brightness | 500 nits |
| Contrast | 1200:1 |
| NTSC % | 72% |
| SRGB % | 100% |
| Adobe % | 75.35% |
| Anti glare | glossy display |
| Adaptive-Sync technology | AMD FreeSync™ Premium (Variable Refresh Rate) |
| Pantone | N/A |
| Support Dolby Vision HDR | N/A |
| Glass | Gorilla® Glass DXC Gorilla® Glass Victus™ |
| On board memory | 16GB LPDDR5 on board (6400MT/s dual channel) |
| Total System Memory | LPDDR5X 16GB |
| Memory Slot | N/A |
| Memory Max. | 16GB |
| Multi-channel memory technology | Support dual channel memory |
| System Storage Installed | 512GB PCIe® 4.0 NVMe™ M.2 SSD (2280) |
| M.2 slots support either SATA or NVMe | 1 |
| M.2 SSD Support List | M.2 2280 512GB SSD |
| LAN | N/A |
| On board Wireless | Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.2 (*Bluetooth® version may change with OS version different.) |
| I/O Ports | 2x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery 1x UHS-II microSD card reader (supports SD, SDXC and SDHC) |
| Display output | N/A |
| Audio | 1x 3.5mm Combo Audio Jack |
| Mic | Built-in array microphone |
| Aura Sync | Yes |
| Speakers | 2-speaker system with Smart Amplifier Technology |
| Audio Tech | AI noise-canceling technology Dolby Atmos Hi-Res certification (for headphone) Smart Amp Technology |
| Operating System | Windows 11 Home |
| Antivirus | N/A |
| Xbox Game Pass | Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Security | Built-in Fingerprint Sensor Microsoft Pluton security processor |
| Battery | 60WHrs, 4S1P, 4-cell Li-ion |
| Power | TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal |
| Control and Input | 2 x assignable grip buttons A B X Y buttons Armoury Crate button Command Center button D-pad L & R Hall Effect analog triggers L & R bumpers Menu button View button Thumbsticks: 2 x full-size analog sticks Haptics: HD haptics |
| Gyro | 6-Axis IMU |
