Description

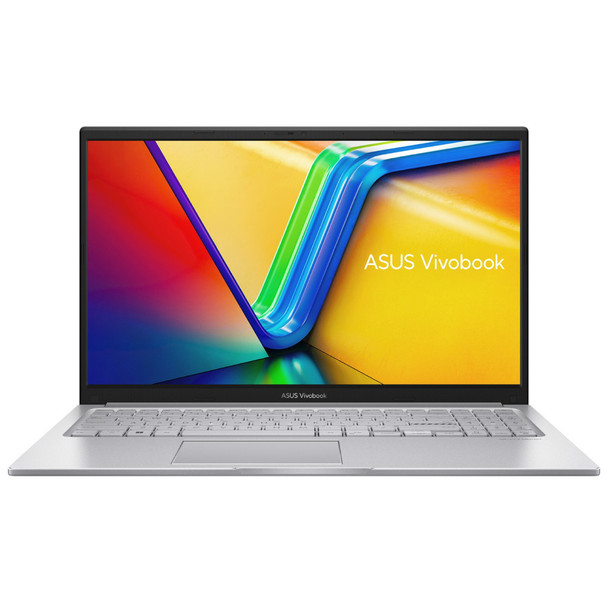

ASUS Vivobook 15 OLED Laptop | Intel Core i7 Processor | 16GB RAM | 1TB SSD Storage | X1505VA-L1774W
| Sales Model Name | X1505VA-L1774W |
| EAN Code | 4711387964668 |
| UPC Code | 197105964662 |
| WEEE | 1.5 |
| BASE UNIT | VSNB10P2-BU2100 |
| Marketing Name | ASUS Vivobook 15 OLED |
| Operating System | Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| LCD cover-material | Plastic |
| LCD cover-color | Cool Silver |
| Top case-material | Plastic |
| Top case-color | Cool Silver |
| Keyboard color | Black |
| Bottom case-material | Plastic |
| Bottom case-color | Cool Silver |
| Military grade | US MIL-STD 810H military-grade standard |
| Touch Panel | Non-touch screen |
| Panel Size | 15.6-inch |
| Resolution | FHD (1920 x 1080) OLED 16:9 aspect ratio |
| LED Backlit Unit | |
| IPS-level | |
| Response time | 0.2ms response time |
| Refresh rate | 60Hz refresh rate |
| Brightness | |
| Peak Brightness | 600nits HDR peak brightness |
| Color gamut | 100% DCI-P3 color gamut |
| Gamut mapping | Yes |
| Contrast ratio | 1,000,000:1 |
| VESA CERTIFIED Display HDR | VESA CERTIFIED Display HDR True Black 600 |
| Color depth | 1.07 billion colors |
| Pantone | PANTONE Validated |
| Surface texture of display | Glossy display |
| Low blue light | 70% less harmful blue light |
| TÜV Rheinland-certified | TÜV Rheinland-certified |
| SGS Eye Care Display | SGS Eye Care Display |
| Screen-to-body ratio | 86% |
| Stylus support | |
| Intel Athena Program | |
| Processor | Intel® Core™ i7-13620H Processor 2.4 GHz (24MB Cache, up to 4.9 GHz, 10 cores, 16 Threads) |
| Chipset | N/A |
| Intergrated GPU | Intel® UHD Graphics |
| Discrete/Share | Share |
| Graphics | |
| Disclaimer for Intel Iris Xe | *Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors with up to 80 graphics execution units (EUs) and dual-channel memory. |
| Graphic Memory | |
| Neural Processor | |
| Expansion Slot(includes used) | 1x DDR4 SO-DIMM slot 1x M.2 2280 PCIe 4.0x4 |
| On board memory | 8GB DDR4 on board |
| DIMM Memory | 8GB DDR4 SO-DIMM |
| Total System Memory | DDR4 16GB |
| Disclaimer for memory | |
| How to upgrade memory | |
| Storage | 1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera | 720p HD camera With privacy shutter |
| on board Wireless | |
| Wireless | Wi-Fi 6E(802.11ax) (Triple band) 1*1 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Keyboard type | Chiclet Keyboard with Num-key |
| Touchpad | Precision touchpad |
| FingerPrint | N/A |
| I/O ports | 1x USB 2.0 Type-A (data speed up to 480Mbps) 1x USB 3.2 Gen 1 Type-C with support for power delivery (data speed up to 5Gbps) 2x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps) 1x HDMI 1.4 1x 3.5mm Combo Audio Jack 1x DC-in |
| Audio | SonicMaster Built-in speaker Built-in array microphone |
| Voice control | with Cortana voice-recognition support |
| Power | ø4.5, 65W AC Adapter, Output: 19V DC, 3.42A, 65W, Input: 100~240V AC 50/60Hz universal |
| Required charging power | |
| Battery | 50WHrs, 3S1P, 3-cell Li-ion |
| Replaceable Battery | No |
| Weight (without Battery) | 1.70 kg (3.75 lbs) |
| Weight (with Battery) | 1.70 kg (3.75 lbs) |
| Dimension (W x H x D) | 35.68 x 22.76 x 1.99 ~ 1.99 cm (14.05" x 8.96" x 0.78" ~ 0.78") |
| Tablet Dimension (W x H x D) | |
| Dimension for Keyboard | |
| Built-in Apps | MyASUS ScreenXpert GlideX |
| MyASUS feature | System diagnosis Battery health charging Fan Profile Splendid Tru2Life Function key lock WiFi SmartConnect TaskFirst Live update ASUS OLED Care AI Noise Canceling |
| Content for GoPro free subscription | 3-Month GoPro Premium+ Subscription *Available in eligible markets only. Eligibility varies by region, device, and time. Terms and conditions apply. See promotion pages for details. |
| Office | 1-month trial for new Microsoft 365 customers. Credit card required. |
| Antivirus | McAfee® 30 days free trial |
| Security | McAfee® BIOS Booting User Password Protection BIOS setup user password Trusted Platform Module (Firmware TPM) |
| Adobe Creative Cloud Hard Bundle | One-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2025. |
| Ecolabels & Compliances | Energy star 8.0 RoHS REACH |
